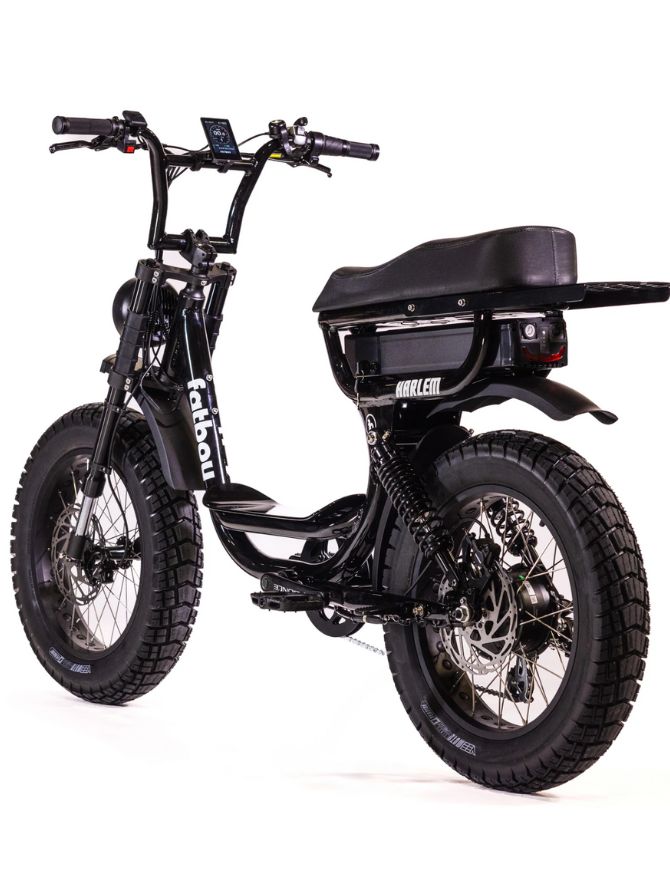

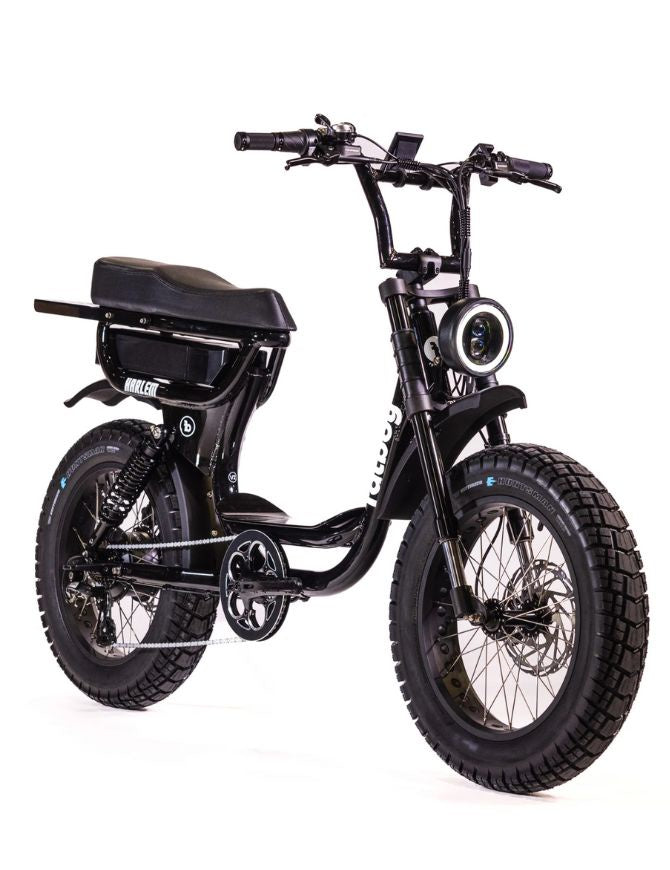

Fatboy Harlem V2 Electric Bike | Gloss Black

Fatboy Harlem V2 Electric Bike

Step-Through Style. Street-Ready Power. Built for Two.

The Fatboy Harlem V2 is the fat-tyre e-bike built around accessibility and everyday comfort — without giving up anything on performance. The step-through frame makes it the easiest bike in the Fatboy range to mount and dismount, which means it's a natural fit for commuters, shorter riders, and anyone who wants the full Fatboy experience without a high crossbar in the way. It seats two, handles Melbourne streets with confidence, and turns every ride into something you actually look forward to.

Under the cruiser looks is a serious drivetrain. The BAFANG rear-hub motor peaks at 1,560W with 100Nm of torque on a 52V Samsung lithium-ion system — the same proven core as the Scrambler V2. The 20Ah battery delivers up to 100km under ideal conditions, with realistic mixed-city range of 40–70km. The battery is removable and lockable so you can charge it indoors without moving the bike. Nine pedal assist levels let you dial in exactly how much effort you want to put in, and the twist throttle with isolator is there for private-property rides when you want full electric power on demand.

Suspension on the Harlem V2 was specifically upgraded from the previous generation — the front fork features 30mm more travel for a noticeably smoother ride over urban surfaces, paired with a rear adjustable mono-shock. Stopping power comes from 203mm TEKTRO hydraulic disc brakes front and rear. The colour LCD display adds USB phone charging, trip data, speed, battery level, and odometer. A two-seater gripper saddle and rear passenger footpegs complete a setup that's genuinely rated to 180kg total load — rider and passenger ready from the factory.

Why Ride the Fatboy Harlem V2?

✅ Step-Through Frame – The most accessible entry in the Fatboy range; ideal for shorter riders, commuters, and anyone prioritising easy mounting
✅ BAFANG 500W Motor / 1,560W Peak / 100Nm Torque – Smooth, confident power for commuting, errands, and two-up riding
✅ 52V 20Ah Samsung Battery – Removable and lockable; up to 100km range, 40–70km realistic city use
✅ Upgraded Front Suspension – 30mm more travel than the previous generation for a noticeably smoother urban ride
✅ Rear Adjustable Mono-Shock – Dial in your rear suspension for rider weight and terrain
✅ 203mm TEKTRO Hydraulic Disc Brakes – Reliable, progressive stopping power front and rear
✅ Two-Seater Gripper Saddle + Passenger Pegs – 180kg total load rated; genuinely built for two
✅ 3-Stage LED Headlight with DRL + LED Tail Light – Visible day and night
✅ LCD Colour Display with USB Charging – Speed, battery, assist level, trip data, and phone charging in the cockpit
✅ Limited Clearance Stock – Original Harlem V2 model; grab it before it's gone

Tech Specs

Motor: BAFANG rear-hub, 500W continuous / 1,560W peak controller output / 100Nm torque
Battery: 52V 20Ah Samsung lithium-ion (UL2271 compliant) — removable and lockable
Range: Up to 100km per charge (real-world city: 40–70km; heavy throttle/hills: 25–45km)
Speed: 25km/h public road restriction; unlockable to 50km/h for private property
Tyres: 20×4" Vee Rubber puncture-resistant fat tyres
Suspension: Upgraded front fork with 30mm additional travel + rear adjustable mono-shock
Brakes: 203mm TEKTRO hydraulic disc brakes (front and rear)
Drivetrain: Shimano 7-speed
Display: Water/dirt-resistant LCD colour display with USB phone charging, speed, battery, assist level, trip/ODO
Lights: 3-stage LED headlight with daytime running feature + LED tail light
Assist: PAS 1–9 cadence sensing + twist throttle with isolator (private property only)
Max Load: 180kg (rider + passenger/cargo)
Bike Weight: Approx. 38kg including battery
Charge Time: Approx. 4–6 hours full charge
Warranty: 2-year complete bike warranty

Frequently Asked Questions

Is the Fatboy Harlem V2 legal to ride on Australian roads?

Yes — when operated in pedal-assist mode restricted to 25km/h, the Harlem V2 meets Australian EPAC requirements for public road use. The motor cuts out at 25km/h or when pedalling stops above 6km/h. The twist throttle must be isolated on public roads — it's for private property use only. The bike can be unlocked to 50km/h for private property riding only. Regulations vary by state so call us on 03 9421 2293 if you want to talk through your situation before buying.

What real-world range should I expect?

The 100km figure is under optimal conditions — light rider, flat terrain, low assist, consistent speed. In real Melbourne mixed-use riding expect 40–70km. With a passenger, hills, or heavy throttle use, plan for 25–45km. For maximum range: use PAS 1–2 on flat sections, maintain tyre pressure, and avoid repeated full-throttle starts. The removable battery makes it easy to charge at your destination without moving the bike.

How does the Harlem V2 compare to the V3?

The V2 is the original Harlem — lighter, removable battery, and currently on limited clearance stock at a sharper price. The V3 is the fully updated model featuring the FBX Power Platform developed with Bafang, Fatboy's proprietary custom suspension with full preload/compression/rebound tuning, upgraded 4-piston brakes with metal sintered pads and 2.9mm thick discs, and refined ergonomics throughout. Same battery capacity on both — the V3 upgrade is about smarter power, superior ride quality, and better braking. Both are in our Melbourne showroom.

About Fatboy Electric Bikes

Fatboy built their reputation on one simple idea: fat tyres make everything more fun. Starting with the oversized tyre format that transformed beach cruiser riding, Fatboy evolved into one of Australia's most recognised electric bike brands by combining serious electric components with approachable, lifestyle-first design. Their bikes are built for real Australian conditions — urban streets, coastal paths, suburban commutes — and are backed by a local support network. Twelve Board Store is an authorised Fatboy dealer with full warranty coverage and a dedicated in-house service and repair team.
