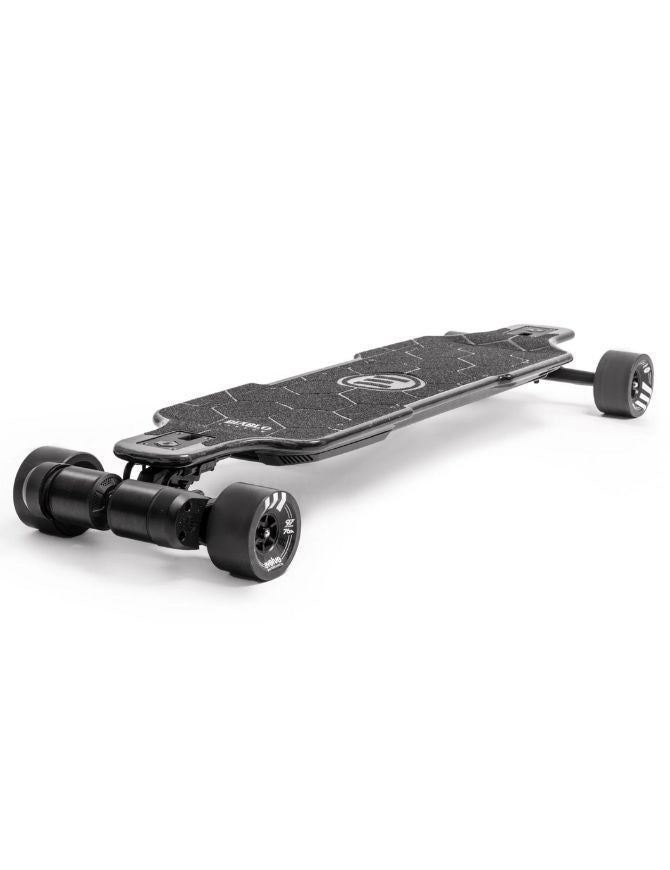

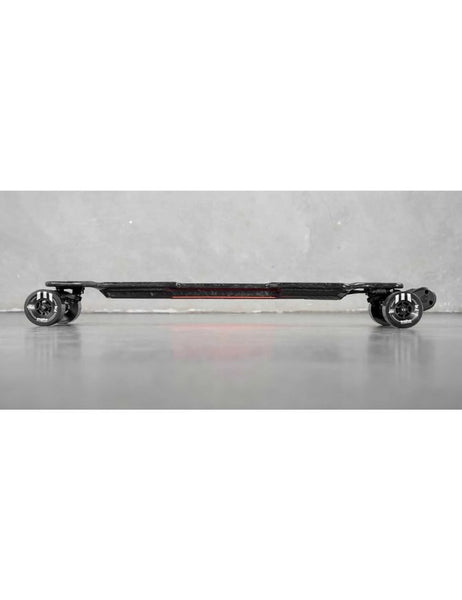

Introducing the new Evolve Diablo range. Evolve continues to design and develop and have brought out The Diablo Series to up the game. Featuring more power, more range and more speed. The Evolve Diablo Electric Skateboard is designed to provide the ultimate riding experience, combining speed, power, and versatility in one sleek package. Whether you're an urban commuter or an off-road adventurer, the Diablo adapts to your riding style and terrain preferences effortlessly. The Evolve Diablo Bamboo All Terrain electric skateboard is built to handle a variety of riding conditions with ease, providing a smooth and powerful ride for both urban and off-road adventures. The combination of a flexible bamboo-fiberglass deck, powerful dual motors, and advanced motor controller makes it a top choice for riders seeking performance and versatility.
-
Key Features

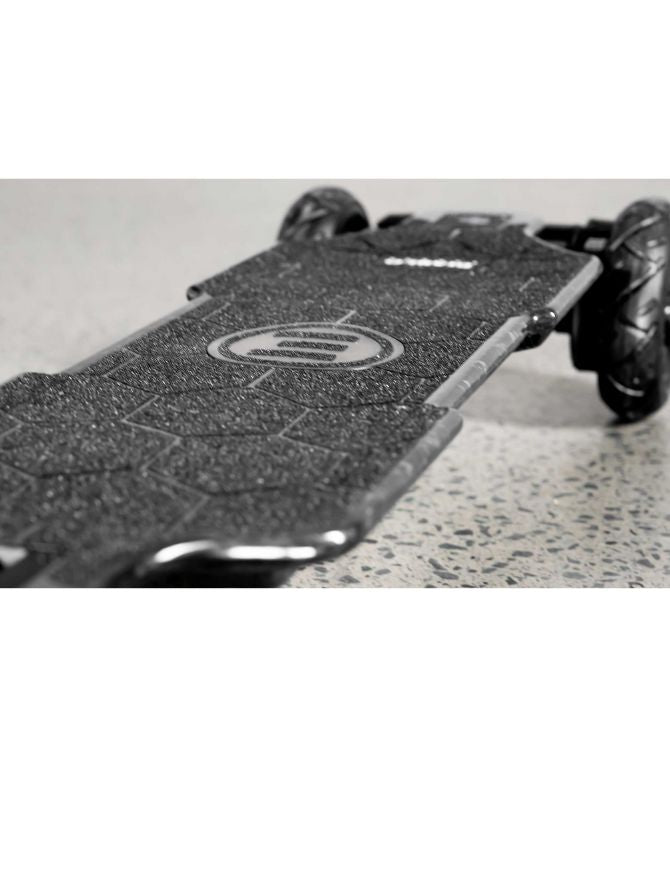

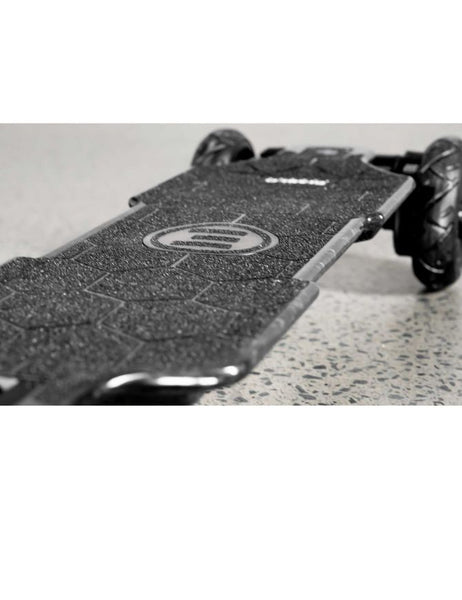

- Forged Carbon Fiber Deck: The Diablo's deck is crafted from forged carbon fiber, providing exceptional strength and agility. This material ensures a smooth and stable ride, whether you're cruising city streets or tackling off-road terrain.
- Dual 6374 Brushless Motors: With a total power output of 7000W, these custom brushless motors allow the Diablo to reach speeds of up to 50 km/h. The motors deliver high torque and smooth acceleration, making it perfect for steep hills and rapid takeoffs.
- EFOC 2 Motor Controller: This custom motor controller offers precise control with a 50V, 200A dual-motor driver. It includes features like FOC motor commutation and Bluetooth connectivity, ensuring seamless integration with the Evolve app for real-time ride data and adjustments.
- Battery and Range: Equipped with a 43.2V, 864Wh Samsung 50S battery, the Diablo provides a range of up to 80 km on street wheels and 50 km on all-terrain wheels. The battery supports quick recharges in just 4 hours.
- Evolve Supercarve 2 Trucks: These forged and CNC-machined trucks offer enhanced stability and precision carving, making every turn a thrill.
- Interchangeable Wheels: The Diablo comes with options for both street and all-terrain wheels, allowing you to switch between 97mm urethane wheels for smooth pavement and 175mm pneumatic tires for rough terrains.
- Advanced Braking System: The regenerative braking system is super smooth and adjustable via the Evolve app, providing customizable brake and acceleration curves.
- Integrated Lighting: The board features under-body and logo LED lights that can be controlled via the remote or app, including smart brake lights for added safety.
Specifications
- Deck Material: Forged carbon fiber
- Deck Length: 100 cm (39.3")
- Wheel Base: 96.5 cm (38")
- Weight: 13.1 kg (29 lb) for the street version, 14.3 kg (31 lb) for the all-terrain version
- Max Load: 120 kg (265 lbs)
Performance
- Top Speed: Up to 50 km/h (31 mph)
- Range: Up to 80 km (50 miles) on street wheels, 50 km (31 miles) on all-terrain wheels
- Motor: Dual 6374 3500W (7000W total) custom brushless sensored motors
- Battery: 43.2V, 864Wh, 20Ah Samsung 50S cell
- Recharge Time: 4 hours
Features
- Trucks: Evolve Supercarve 2 - Forged/CNC - Black Finish
-
Wheels:
- Street: Custom-formula 97mm, 76a urethane wheels
- All-Terrain: Evolve 175mm (7") pneumatic tires
- Motor Controller / ESC: eFOC 2.0 with Bluetooth connection
- Braking: Regenerative braking with adjustable brake and acceleration curves via the Explore app
- Remote: Phaze remote with CNC aluminium-reinforced body
- Lights: Integrated under-body and logo LED lights with customizable control via the remote and Evolve app, including Smart Brake Lights
Terrain Suitability
- Street Version: Suitable for sealed surfaces like asphalt and concrete roads and footpaths
- All-Terrain Version: Suitable for short grass, dirt, gravel, roads, and footpaths
- Hill Climbing: Capable of handling gradients of 45% or more
Additional Features
- Cooling System: Custom CNC heatsink with cooling vents
- Aesthetics: Industry-leading chassis-style deck made from forged carbon fiber
- App Integration: Evolve app provides real-time ride data displayed on a vibrant LCD screen
What's Included
- Your new Diablo Carbon skateboard
- Fast charger (5A)
- Phaze remote with leash and USB-C charging cable
- Y tool
- Spare screws set
