Evolve Diablo Carbon Green Mainframe — Limited Edition All Terrain
Only 2 Available. Once They're Gone, They're Gone.
The Diablo Carbon Green Mainframe is not a colourway. It's a complete custom build — one of only a handful produced worldwide — and we have just two in stock at Twelve Board Store.
Born from Evolve's ongoing rider-driven development program, the Green Mainframe takes the flagship Diablo Carbon platform and reimagines every visible component. A laser-cut, circuit-inspired grip tape design sits over the forged carbon fibre deck, revealing an exposed premium weave beneath. The drivetrain, hubs, trucks, and gears are all finished in precision CNC-cut anodised green aluminium — a cohesive, technical aesthetic that looks like no other board Evolve has produced.
Under all of it is the same Diablo Carbon performance you already know. Dual 3500W 6374 motors, 864Wh Samsung 50S battery, EFOC 2.0 drivetrain, 50km/h top speed, and 50km all-terrain range. The electronics, firmware, power, and ride character are identical to the standard Diablo Carbon — this is not a spec compromise, it's a spec-for-spec flagship build in an exclusive finish.
What Makes It Different
- Laser-cut circuit-inspired grip tape over forged carbon fibre deck — exposed weave visible beneath the cut
- Green CNC precision-cut aluminium 66T drive gears
- Green CNC precision-cut aluminium all-terrain hubs

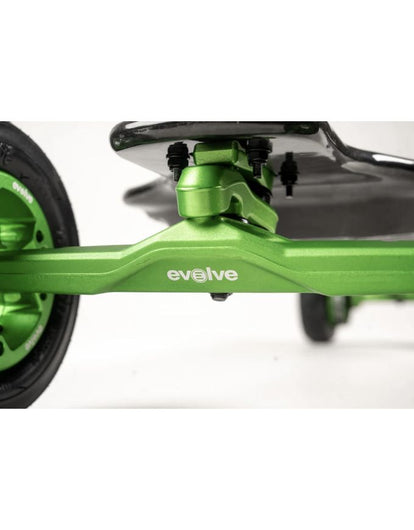

- Green SuperCarve 2.0 trucks — same precision carve, matching finish
- Identical performance to the standard Diablo Carbon AT in every measurable spec
Tech Specs
Motors: Dual 3500W brushless sensored 6374 (7000W combined peak)
Motor Controller: EFOC 2.0 — 50V, 200A dual-motor driver, FOC commutation, Bluetooth
Battery: 43.2V / 864Wh / 20Ah Samsung 50S (180A max discharge)
Top Speed: 50km/h
Range: Up to 50km (All Terrain)
Hill Climb: 45%+ gradient
Charge Time: 4 hours (5A fast charger included)
Deck: Forged carbon fibre | 100cm (39.3") | laser-cut circuit grip tape | rigid — no flex
Trucks: Green SuperCarve 2.0 — CNC forged
Wheelbase: 96.5cm (38")
Wheels: 175mm / 7" pneumatic with green CNC aluminium AT hubs
Gears: Green CNC precision-cut aluminium 66T drive gears
Bearings: Evolve Precision Bearings
Remote: Evolve Phaze — CNC aluminium-reinforced body, LCD display
App: Explore By Evolve (iOS + Android)
Lighting: Integrated front and rear LED — user-customisable via remote and app
Braking: EFOC 2.0 regenerative — adjustable via app
Ride Modes: ECO / SPORT / CORSA (plus full custom tuning via app)
Weight: 14.35kg
Max Rider Load:
